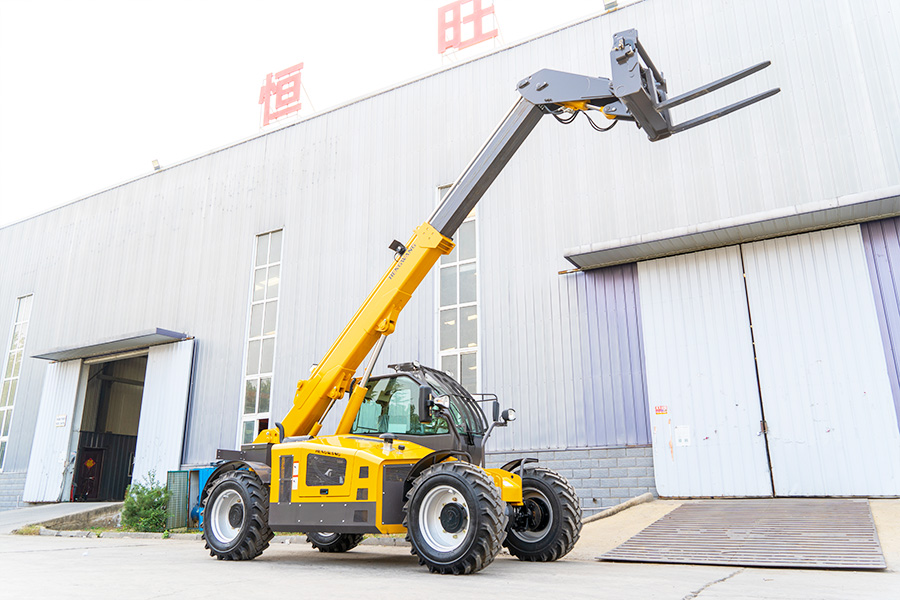

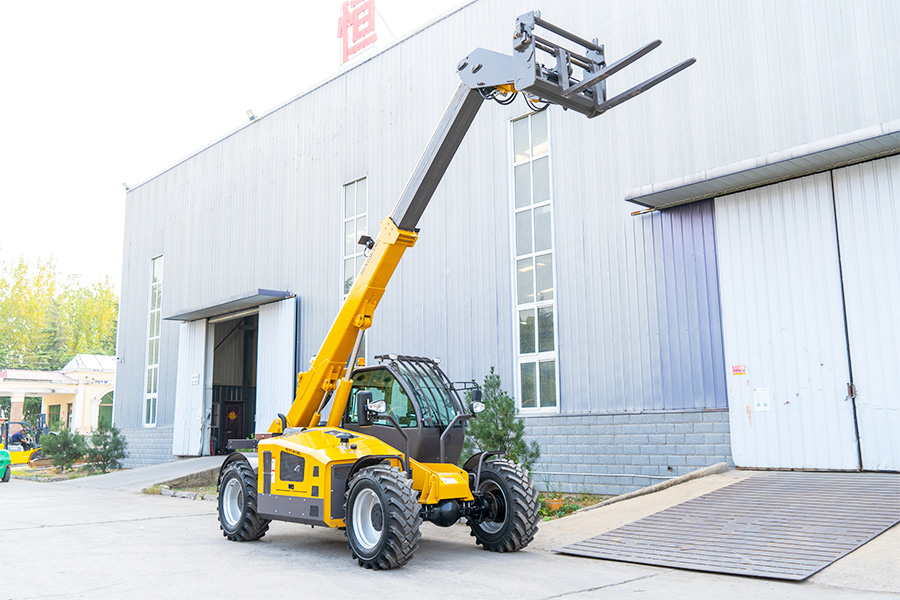

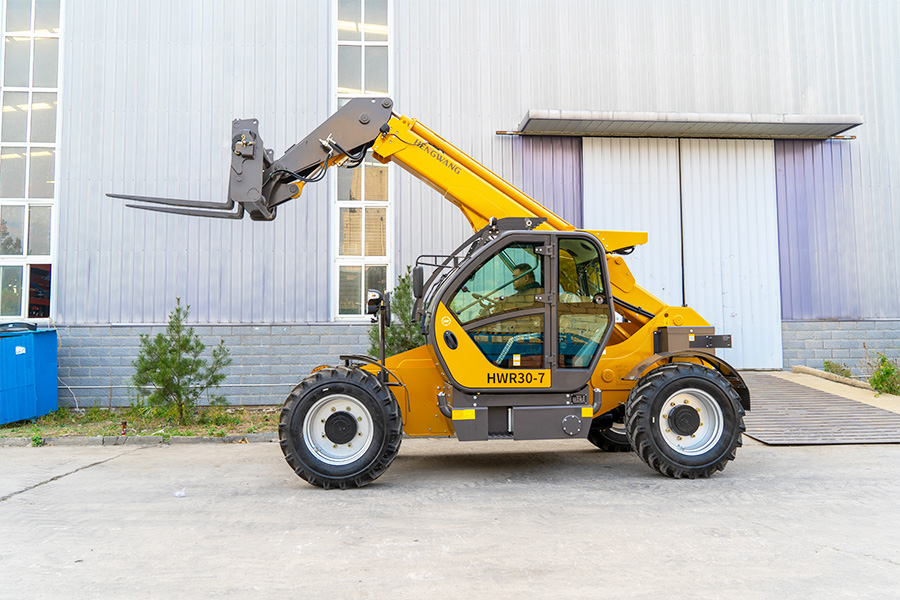

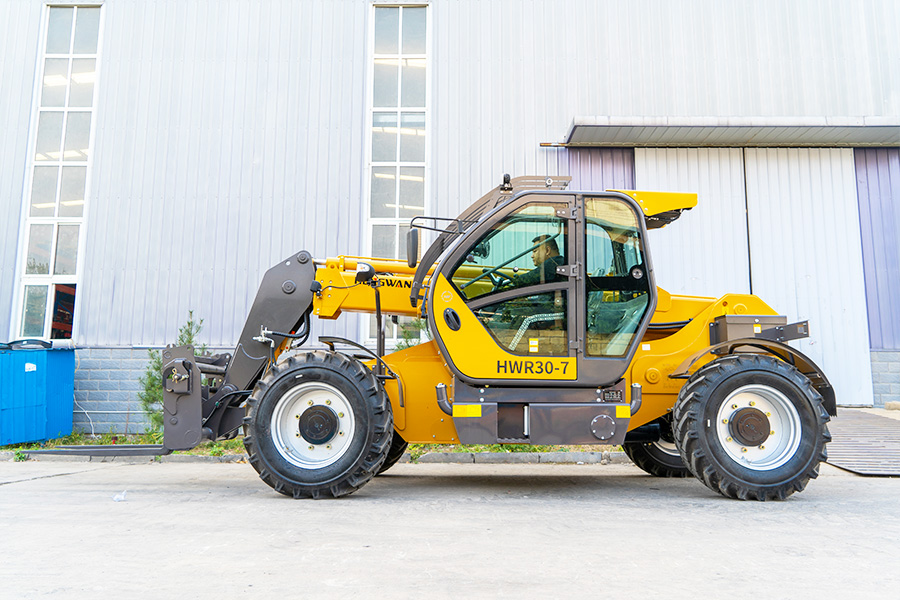

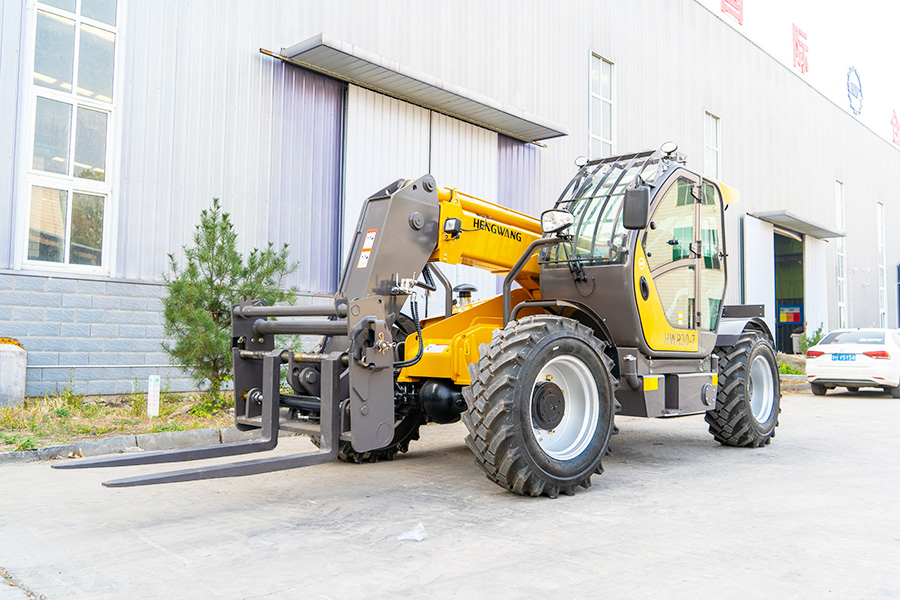

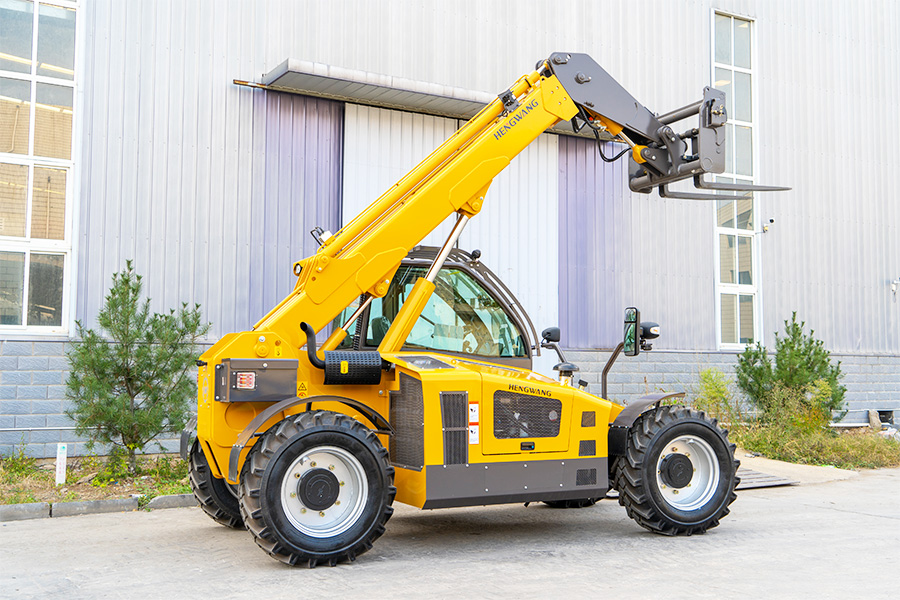

Telehandlers will take your material handling productivity to new heights. Telehandlers offer the extended reach and superior lift capacity of a heavy-duty telescoping boom combined with a range of attachments. It will quickly become your go-to machine for farming and ranching applications, construction, landscaping, snow removal, and much more.
Telehandlers are designed durable – and built to last – with a combination of tough construction, high-quality materials and features that maximize reliability. Look to the rigid frame, sealed engine compartment and side-by-side cooling design and know it’s ready for the most severe conditions.
| Main technical parameters |
| Rated load | 3000KG |
| Operating weight | 8580KG |
| Rated bucket capacity | 1.6 m³ |
| Maximum dump height (41° discharge Angle) | 5993mm |
| Dump reach | 556.7mm |
| Engine |
| Engine model | YC4A105Z-T20 |
| Cooling type | Water cooling |
| Rated power | 75 (kW) |
| Total exhaust of cylinder | 4.8(L) |
| Rated speed | 2200(r/min) |
| Max. Torque | 400(N.M) |
| Hydraulic system |
| Working pump displacement | 63ml/r |
| Working pump pressure | 20Mpa |
| Steering gear model | BZZ-500 |
With their compact size, lift capacity, maneuverability and attachment versatility, there’s little that telehandlers can’t do. Adding one to your fleet can help you take your business to new heights.
